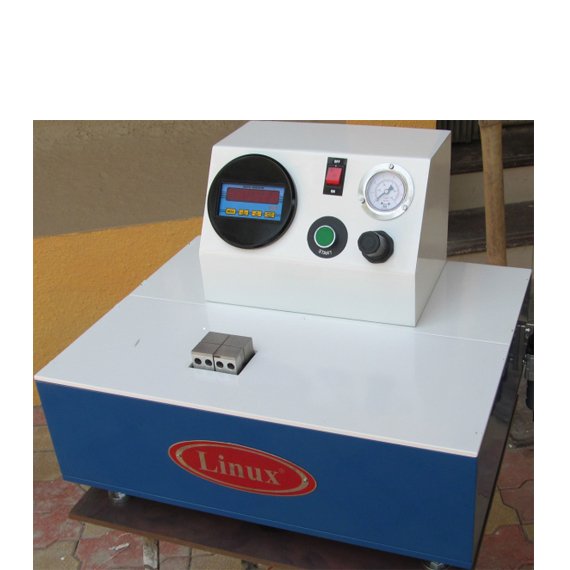

Shot Span Compession Tester

Shot Span Compession Tester
Shot Span Compession Tester

Equipment designed to perform Shot Span Compression Test and determining the compression strength on Fluting Medium and Test Liner papers within the rammage range of 100-400 g/m2 units. Put a rectangular sample with a minimum length of 150 mm and fixed width of 15 mm between the clamps. then push the test button and clamps will close automatically and perform the test a 3 mm/min testing speed.

  • Single button operation activates an automatic test cycle.
  • Buzzer prompts automatically when test is finished.
  • Load cell with overload protection
  • Unique clamping mechanism
  • LED displays testing data.
  • Basic ease of use.
