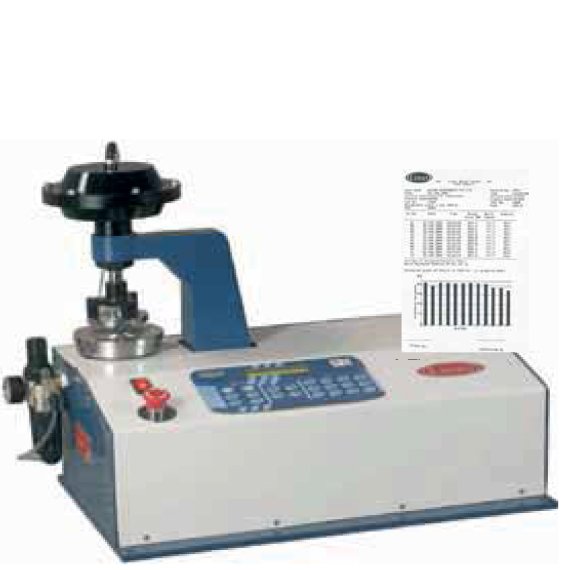

Bursting Strength Single Head Micro Print Model

Bursting Strength Single Head Micro Print Model

Bursting Strength is a widely used measure of resistance to rupture of various materials. A test specimen is held between two circular clamps and subjected to an increasing pressure from a rubber diaphragm. The rubber diaphragm is expanded by a controlled hydraulic pressure until the test specimen ruptures. The Bursting Strength of the specimen is the pressure reading at the time of rupture.

Features:

• Single head machine testing for Paper OR Corrugated Board
• Paper Tester: Fitted with thin Rubber Diaphragm to accurately test materials having lower burst values like Paper.
• Capacity: 14 kg/cm2 with least Count 0.01 kg/cm2.
• Board Tester: Fitted with Moulded Rubber Diaphragm to test material with higher burst values like Paperboard, Corrugated Board, Fabric Cloth, etc. Capacity: 35 kg/cm2 with least Count 0.1 kg/cm2.
• Measuring Units: kg/cm2 or PSI.
• Auto Calibration in 5 simple steps.
• Overload protection.
• Single push button operation activates an automatic test cycle
• Adjustable clamping pressure (Pneumatic air to be provided by you)
• System BF calculation for Paper
• Programmable User Name, Product Name, Vender / Customer Name, Codes, Lot No., Date & Time etc.
• A group of 12 tests can be performed for report
• Report can be directly printed from the dot matrix printer connected to the machine (the printer to be provided by user)
