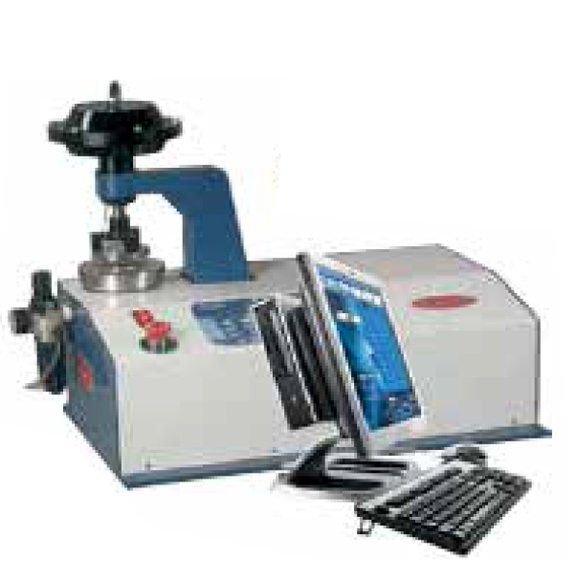

Bursting Strength Single Head Micro PC Model

Bursting Strength Single Head Micro PC Model

Bursting Strength is a widely used measure of resistance to rupture of various materials. A test specimen is held between two circular clamps and subjected to an increasing pressure from a rubber diaphragm. The rubber diaphragm is expanded by a controlled hydraulic pressure until the test specimen ruptures. The Bursting Strength of the specimen is the pressure reading at the time of rupture.

Features:

• Single head machine testing for Paper OR Corrugated Board
• Paper Tester: Fitted with thin Rubber Diaphragm to accurately test materials having lower burst values like Paper.
• Capacity: 14 kg/cm2 with least Count 0.01 kg/cm2.
• Board Tester: Fitted with Moulded Rubber Diaphragm to test material with higher burst values like Paperboard, Corrugated Board, Fabric Cloth, etc. Capacity: 35 kg/cm2 with least Count 0.1 kg/cm2.
• Measuring Units: kg/cm2 or PSI.
• Auto Calibration in 5 simple steps.
• Overload protection.
• The Micro PC Model is an extension of micro print model with PC connect ability and operations.
• RS 232 Port with Software, to transfer data to computer (Computer to with provided by user)
• The reports can be exported to PDF, MS Excel format
• Windows based Software
• You can recall any test done in history.
• Adjustable clamping pressure (Pneumatic air to be provided by you)
